A new map board.

My current campaign map board is a pin board which is hung on my wargame room door. It is 900mm x 600mm and it isn't quite big enough. Cue the map board saga....

A couple of months ago I decided to buy a bigger campaign map board. After much thought I finally plumbed for a magnetic whiteboard over a pin board and decided to get the biggest one I could store (1200mm x 900mm). My first thought was to wall mount it (in the position it now occupies but at the height of the pictures above it) and initially that's exactly what I did. Unfortunately, when stood in front of it in this position it was very difficult to view - the distance between eye and board being too short. Consequently, I had to come up with a different solution.

The map board still needed to be stored here because its the only free space large enough to accommodate it but it needed to be made moveable. So I decided to make a baton with wooden pegs to support the board at the bottom, and use magnets and wall mounted metal plates to hold it against the wall at the top - an unclip and shift affair.

This is only a plasterboard studding wall. It has just two batons behind it (one at each end) and I wasn't sure that a single screw at each end of the baton would be strong enough to securely hold it in place over time (the board is quite heavy), so I decided to drop the baton to the top of the skirting board; the skirting board supports the baton and weight of the whiteboard along its entire length: it's much stronger.

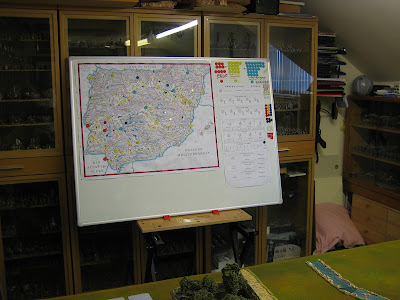

When in use, I plan to put the whiteboard up in front of the figure cabinets, at the other end of the room, supported on my trusty Black & Decker Workmate.

As some may have noticed, in the comments section of the previous post, I have been working on version 2  of my Peninsular campaign rules because, against expectations, version 1 is proving to be 'the campaign without end' and better victory conditions needed to be formulated to inject better defined strategic goals. However, the basic campaign system works well and the Peninsular campaign is one I fully intend to run again. Hence the new, much bigger and improved map and magnetic counters for it.

The counters:

These are (weather/divisions/holding box) 18mm round magnets which came as a sheet. They have a self adhesive side.

I magnetised up some tiddly winks with white labels for other counters/markers using bits cut from what remained of the round magnet sheet after the round magnets were removed.

3mm magnets painted with enamel paint as markers and left bright metal for use as 'paper holders' complete the mix, except for a bunch of old red and white magnetic draughts/checkers (not pictured) from a travel game which I'm not sure I have a use for yet.

A bigger board allows for a bigger map; a bigger map allows for bigger counters/markers; bigger counters means they can store a fuller ID.

These 18mm diameter magnets are divisional ID markers; they are 2mm thick and, although they stick to the map pretty firmly, are very easy to move from place to place. When I bought these I thought that they might stack one on top of the other but they don't stack very well at all.

I decided to colour this version of the map using paint pens. One thing we noticed when using the black and white map was that major rivers, as a possible defence advantage, were often missed.

Overall, a larger map, with larger counters/markers should make the campaign easier to follow.

The use of magnetic counters was the chief reason for swapping to a whiteboard: Pins damage both map and board - magnetic counters, as you can see, damage neither.

Anyway, I like the magnetic whiteboard campaign map solution very much and, if you are planning a wargame campaign, I would definitely recommend you consider it.
